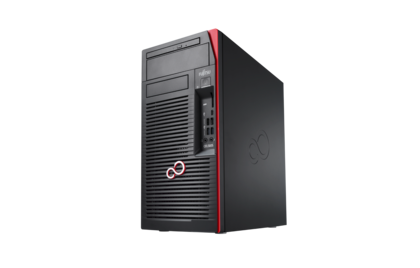

FUJITSU Workstation CELSIUS W570
If you thought you would need to sacrifice performance, expandability, price or energy efficiency in a microtower design – think again. As an industry first, the FUJITSU CELSIUS W570 desktop workstation goes far and beyond with its innovative 21 liter, space-saving microtower design. No compromise for architects, designers and engineers.
- Workstation CELSIUS W570 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
- Windows 10 Home
- Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
- Microsoft OS support information Systems with 7th generation Intel® processor receive support from Microsoft with Windows 10 Home / Windows 10 Pro only. For more information, please see Microsoft Support Lifecycle.
- Downgrade to Microsoft Windows 7 Professional only available with 6th generation Intel® processor
- Additional software (preinstalled) Adobe® Reader® (pdf reader)
- McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3517 (proprietary )
- Chipset Intel® C236
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E3-1285v6, 8 MB, 4.10 GHz, up to 4.5 GHz
- Intel® Xeon® processor E3-1280v6, 8 MB, 3.90 GHz, up to 4.2 GHz
- Intel® Xeon® processor E3-1275v6, 8 MB, 3.80 GHz, up to 4.2 GHz
- Intel® Xeon® processor E3-1270v6, 8 MB, 3.80 GHz, up to 4.2 GHz
- Intel® Xeon® processor E3-1245v6, 8 MB, 3.70 GHz, up to 4.1 GHz
- Intel® Xeon® processor E3-1240v6, 8 MB, 3.70 GHz, up to 4.1 GHz
- Intel® Xeon® processor E3-1230v6, 8 MB, 3.50 GHz, up to 3.9 GHz
- Intel® Xeon® processor E3-1225v6, 8 MB, 3.30 GHz, up to 3.7 GHz
- Intel® Xeon® processor E3-1220v6, 8 MB, 3.00 GHz, up to 3.5 GHz
- Intel® Xeon® processor E3-1280v5, 8 MB, 3.70 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1275v5, 8 MB, 3.60 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1270v5, 8 MB, 3.60 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1245v5, 8 MB, 3.50 GHz, up to 3.9 GHz
- Intel® Xeon® processor E3-1240v5, 8 MB, 3.50 GHz, up to 3.9 GHz
- Intel® Xeon® processor E3-1230v5, 8 MB, 3.40 GHz, up to 3.8 GHz
- Intel® Xeon® processor E3-1225v5, 8 MB, 3.30 GHz, up to 3.7 GHz
- Intel® Xeon® processor E3-1220v5, 8 MB, 3.00 GHz, up to 3.5 GHz
- Intel® Core™ i7-7700 processor, 8 MB, 3.60 GHz, up to 4.2 GHz
- Intel® Core™ i7-6700 processor, 8 MB, 3.40 GHz, up to 4.0 GHz
- Intel® Core™ i5-7600 processor, 6 MB, 3.50 GHz, up to 4.1 GHz
- Intel® Core™ i5-7500 processor, 6 MB, 3.40 GHz, up to 3.8 GHz
- Intel® Core™ i5-6600 processor, 6 MB, 3.30 GHz, up to 3.9 GHz
- Intel® Core™ i5-6500 processor, 6 MB, 3.20 GHz, up to 3.6 GHz
- Intel® Core™ i3-7100 processor, 3 MB, 3.90 GHz
- Intel® Core™ i3-6100 processor, 3 MB, 3.70 GHz
- Processor quantity maximum 1
- Supported capacity RAM (max.) 64 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. DDR4 2,400 MHz will be clocked with 2,133 MHz in combination with 6th generation Intel®processor
- Serial ATA 8 x Serial ATA total
- thereof eSATA 2 (optional)
- Controller functions Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 960 GB High Endurance, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch, SED
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- SSD SATA III, 128 GB, 2.5-inch
- SSD PCIe, 1024 GB M.2 NVMe module
- SSD PCIe, 1024 GB M.2 NVMe Highend module
- SSD PCIe, 512 GB M.2 NVMe module
- SSD PCIe, 512 GB M.2 NVMe Highend module
- SSD PCIe, 256 GB M.2 NVMe module
- SSD PCIe, 256 GB M.2 NVMe Highend module
- SSD PCIe, 128 GB M.2 NVMe module
- SSD PCIe, 1x1024 GB M.2 NVMe Highend card
- SSD PCIe, 1x 1024 GB M.2 NVMe card
- SSD PCIe, 1x 512 GB M.2 NVMe Highend card
- SSD PCIe, 1x 512 GB M.2 NVMe card
- SSD PCIe, 1x 256 GB M.2 NVMe Highend card
- SSD PCIe, 1x 256 GB M.2 NVMe card
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch
- Drive bays 1 x 3.5-inch external bays
- 2 x 3.5-inch internal bays
- 2 x 5.25-inch external bays
- Slots 1 x PCI-Express 3.0 x4 (mech. x16)
- 1 x PCI-Express 3.0 x16
- 2 x PCI-Express 3.0 x1
- Interfaces 1 x Audio: line-in
- 1 x Audio: line-out
- 1 x Front audio: headphone
- 1 x Front audio: microphone
- 1 x Internal speakers
- 6 x USB 2.0 total
- 2x USB 2.0; 2x USB 3.0; 1x USB 3.1 Type C (Gen1); optional: 1x USB 3.1 Type-C (Gen2) via add on card and front adapter bay x USB front
- 2x USB 2.0 + 1x USB A 2.0 x USB internal
- 2x USB 2.0; 4x USB 3.0 x USB rear
- 2 x DisplayPort
- 1 (optional) x Parallel (25pin with EPP and ECP)
- optional: via adapter card x VGA
- 1 x Ethernet (RJ-45)
- 1 (DVI-D) x DVI
- 1 (optional) x eSATA
- 2 x Mouse / Keyboard (PS/2)
- Graphics Intel® HD Graphics P630, Intel® HD Graphics 630, Intel® HD Graphics P530, Intel® HD Graphics 530, up to 1,782 MB
- Graphics features Support for up to three independent displays, DirectX® 12, HDCP support, OpenCL™ 2.0 (requires Intel® Core™ i3, i5 or i7 processors), OpenGL®4.4, One DisplayPort connector can be converted to DVI-D or HDMI with an optional external adapter, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.2 incl. Multi-Stream, DVI-D interface supports audio output for HDMI monitors
- High-end 3D: AMD Radeon™ Pro WX 7100 , 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- Others: VGA Extension Card
- Notes NVIDIA® Quadro® P4000 requires CELSIUS W570power or CELSIUSpower+.
- Audio codec Realtek ALC671
- LAN 10/100/1,000 MBit/s Intel® I219LM
- Weight approx. 10 kg
- approx. 12 kg
- approx. 30.86 lbs
- Dimensions (W x D x H) 180 x 304 x 375 mm
- 7.09 x 11.97 x 14.76 inch
- Special features Best-in-class noise emission - 18 dB only, Certified for leading workstation applications, EraseDisk functionality, Halogen free mainboard, Made in Germany
- Warranty period 3 years (depending on country)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
