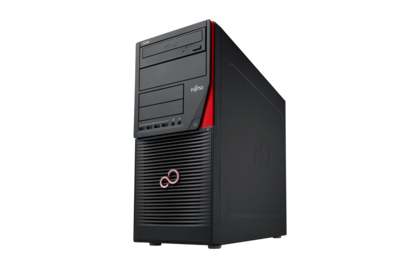

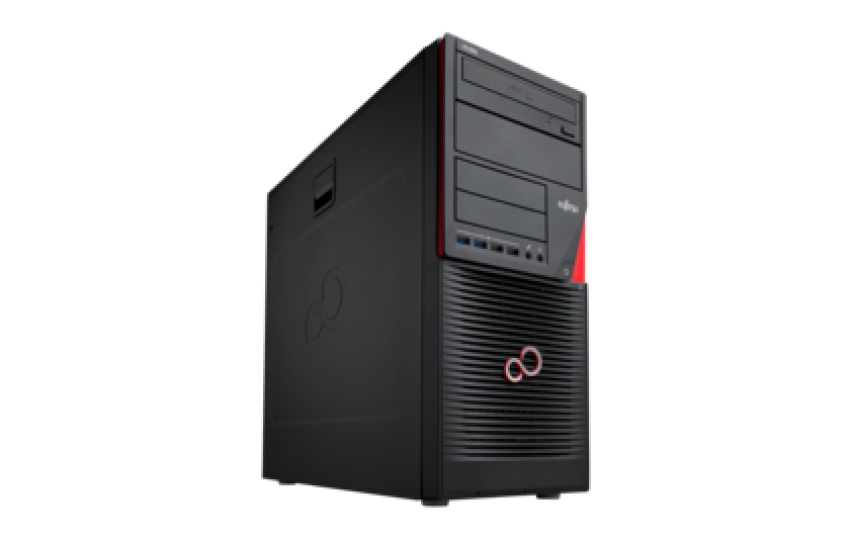

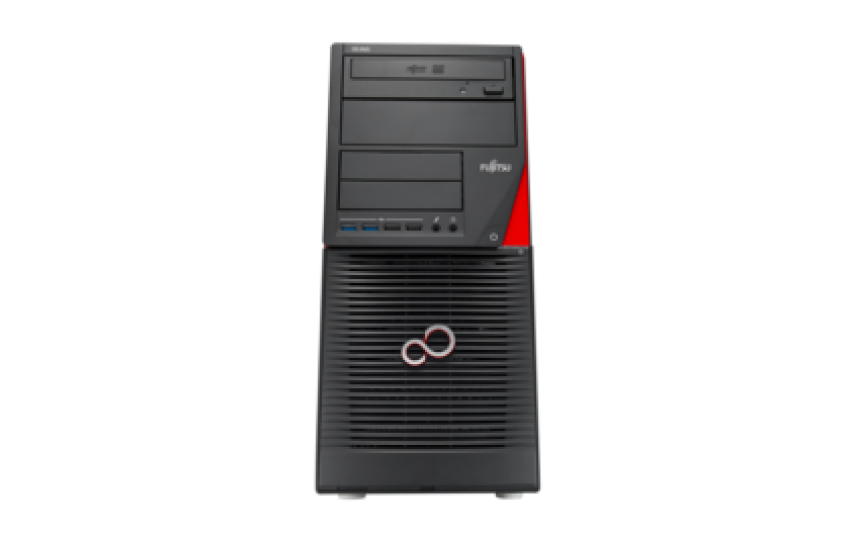

FUJITSU Workstation CELSIUS W550
Has your desktop reached the limit in terms of performance, scalability and expandability? Than the FUJITSU CELSIUS W550 desktop workstation is your ideal choice, especially for video editing, MCAD/electrical CAD or Architecture, Engineering and Construction applications. Enjoy best-in-class low noise emissions of only 18 dB(A) for a quiet and efficient working environment.
- Workstation CELSIUS W550 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
- Windows 10 Home
- Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
- Additional software (preinstalled) Workplace Protect (secure authentication solution)
- Adobe® Reader® (pdf reader)
- McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
- Win7: Fujitsu Recovery (hard disk based recovery)
- Win8: Microsoft Push Button Recovery (hard disk based recovery)
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3417 (µATX)
- Chipset Intel® C236
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E3-1280v5, 8 MB, 3.70 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1275v5, 8 MB, 3.60 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1270v5, 8 MB, 3.60 GHz, up to 4.0 GHz
- Intel® Xeon® processor E3-1245v5, 8 MB, 3.50 GHz, up to 3.9 GHz
- Intel® Xeon® processor E3-1240v5, 8 MB, 3.50 GHz, up to 3.9 GHz
- Intel® Xeon® processor E3-1230v5, 8 MB, 3.40 GHz, up to 3.8 GHz
- Intel® Xeon® processor E3-1225v5, 8 MB, 3.30 GHz, up to 3.7 GHz
- Intel® Xeon® processor E3-1220v5, 8 MB, 3.00 GHz, up to 3.5 GHz
- Intel® Core™ i7-6700 processor, 8 MB, 3.40 GHz, up to 4.0 GHz
- Intel® Core™ i5-6600 processor, 6 MB, 3.30 GHz, up to 3.9 GHz
- Intel® Core™ i5-6500 processor, 6 MB, 3.20 GHz, up to 3.6 GHz
- Intel® Core™ i3-6100 processor, 3 MB, 3.70 GHz
- Processor quantity maximum 1
- Supported capacity RAM (max.) 64 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, a minimum of 2 memory modules have to be ordered. Capacity per channel has to be the same.
- Serial ATA 6 x Serial ATA total
- thereof eSATA 2 (optional)
- Controller functions Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch, SED
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- SSD SATA III, 128 GB, 2.5-inch
- SSD PCIe, 1024 GB M.2 NVMe Highend module
- SSD PCIe, 512 GB M.2 NVMe Highend module
- SSD PCIe, 256 GB M.2 NVMe Highend module
- SSD PCIe, 1x1024 GB M.2 NVMe Highend card
- SSD PCIe, 1x 512 GB M.2 NVMe Highend card
- SSD PCIe, 1x 256 GB M.2 NVMe Highend card
- HDD SATA III, 7,200 rpm, 1000 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch
- Drive bays 2 x 3.5-inch external bays
- 2 x 3.5-inch internal bays
- 4 x 3.5-inch internal bays
- 2 x 5.25-inch external bays
- Slots 1 x PCI-Express 3.0 x4 (mech. x16)
- 1 x PCI-Express 3.0 x16
- 2 x PCI-Express 3.0 x1
- Interfaces 1 x Audio: line-in / microphone
- 1 x Audio: line-in
- 1 x Audio: line-out
- 1 x Front audio: headphone
- 1 x Front audio: microphone
- 1 x Internal speakers
- 6 x USB 2.0 total
- 2x USB 2.0; 2x USB 3.0 x USB front
- 2x USB 2.0 + 1x USB 3.0 x USB internal
- 2x USB 2.0; 4x USB 3.0 x USB rear
- 2 x DisplayPort
- 1 (optional) x Parallel (25pin with EPP and ECP)
- 1 x Serial (RS-232, 9pin, 16 byte FIFO, 16550 compatible)
- optional: via adapter card x VGA
- 1 x Ethernet (RJ-45)
- 1 (DVI-D) x DVI
- 1 (optional) x eSATA
- 2 x Mouse / Keyboard (PS/2)
- Graphics Intel® HD Graphics P530, Intel® HD Graphics 530, up to 1,782 MB
- Graphics features Support for up to three independent displays, DirectX® 12, HDCP support, OpenCL™ 2.0 (requires Intel® Core™ i3, i5 or i7 processors), OpenGL®4.4, One DisplayPort connector can be converted to DVI-D or HDMI with an optional external adapter, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.2 incl. Multi-Stream, DVI-D interface supports audio output for HDMI monitors
- High-end 3D: AMD FirePro™ W7100, 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD FirePro™ W4300, 4 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Professional 2D: NVIDIA® NVS™ 315 fanless, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
- Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Entry 3D: NVIDIA® Quadro® K420, 2 GB, 192 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Professional 2D: NVIDIA® NVS™ 510, 2 GB, 16 cores, PCIe 2.0 x16, 4x miniDP, 4x miniDP/DP Adapter
- Professional 2D: NVIDIA® NVS™ 315, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- Others: VGA Extension Card
- Notes NVIDIA® Quadro® M4000 and ATI FirePro™ W7100 require CELSIUS W550power.
- NVIDIA® Quadro® M4000 and P4000 require CELSIUS W550power.
- Audio codec Realtek ALC671
- LAN 10/100/1,000 MBit/s Intel® I219LM
- Weight approx. 11 kg
- approx. 14 kg
- approx. 24.25 lbs
- approx. 30.86 lbs
- Dimensions (W x D x H) 175 x 419 x 395 mm
- 6.89 x 16.5 x 15.56 inch
- Special features Best-in-class noise emission - 18 dB only, Certified for leading workstation applications, EraseDisk functionality, Halogen free mainboard, Made in Germany
- Warranty period 3 years (depending on country)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
