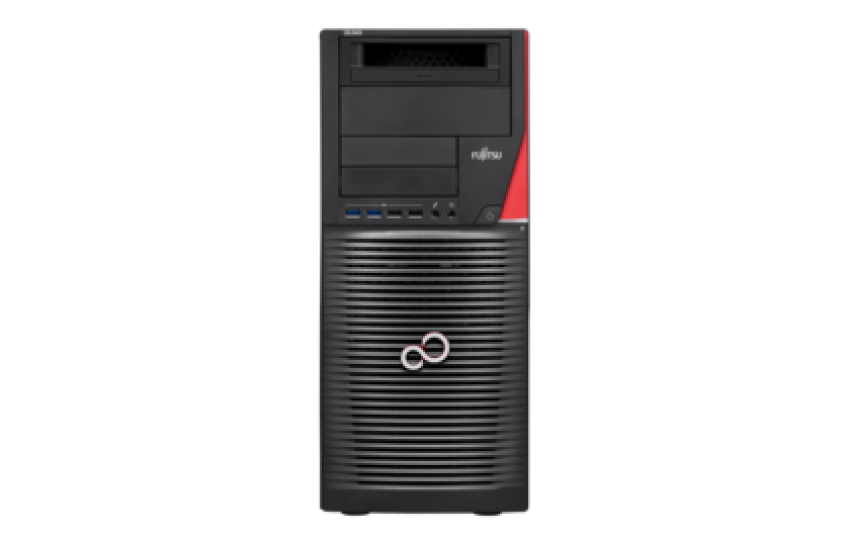

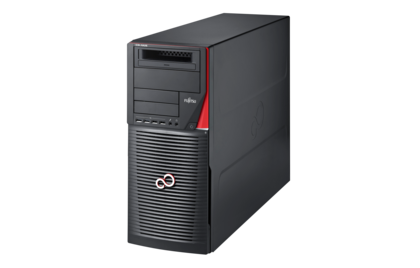

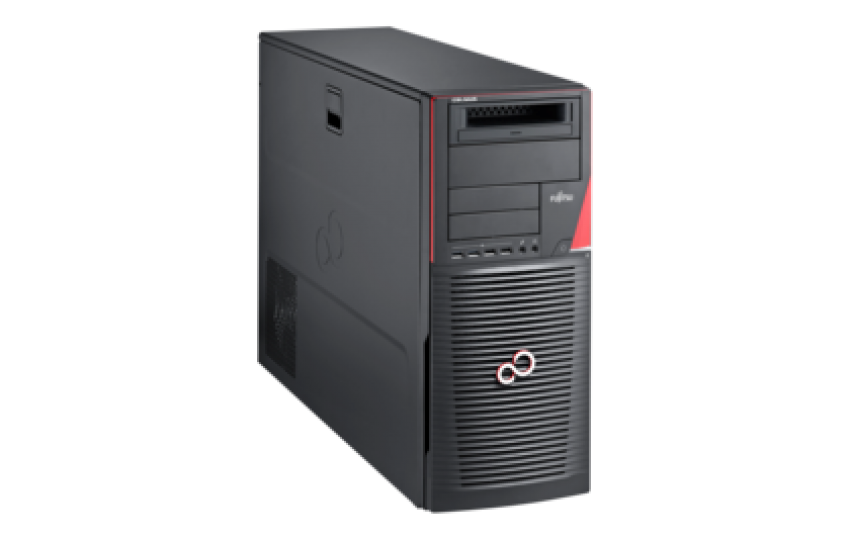

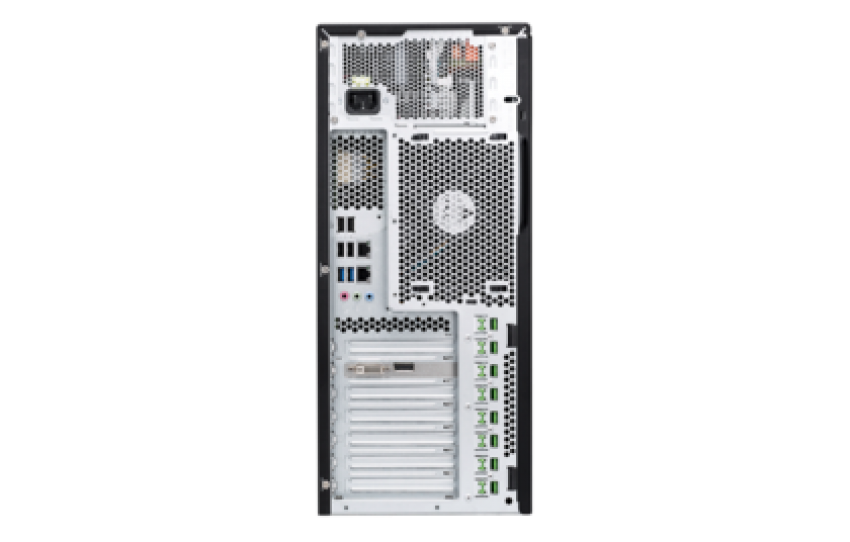

FUJITSU Workstation CELSIUS R940
Fujitsu's CELSIUS R940 desktop workstation is designed to surpass all expectations. Achieving first-class benchmark results, this reliable, high-end dual processor desktop workstation is individually configurable and optimized for extremely demanding and memory intensive multi-threaded applications. CELSIUS workstations offer you an “IT made in Germany” quality in which you can trust.
- Workstation CELSIUS R940 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro
- Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
- Additional software (preinstalled) Workplace Protect (secure authentication solution)
- McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3358-A2x (proprietary )
- Chipset Intel® C612
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E5-2687Wv4, 30 MB, 3.00 GHz
- Intel® Xeon® processor E5-2699v4, 55 MB, 2.20 GHz
- Intel® Xeon® processor E5-2697v4, 45 MB, 2.30 GHz
- Intel® Xeon® processor E5-2690v4, 35 MB, 2.60 GHz
- Intel® Xeon® processor E5-2680v4, 35 MB, 2.40 GHz
- Intel® Xeon® processor E5-2660v4, 35 MB, 2.00 GHz
- Intel® Xeon® processor E5-2650v4, 30 MB, 2.20 GHz
- Intel® Xeon® processor E5-2667v4, 25 MB, 3.20 GHz
- Intel® Xeon® processor E5-2640v4, 25 MB, 2.40 GHz
- Intel® Xeon® processor E5-2630v4, 25 MB, 2.20 GHz
- Intel® Xeon® processor E5-2643v4, 20 MB, 3.40 GHz
- Intel® Xeon® processor E5-2620v4, 20 MB, 2.10 GHz
- Intel® Xeon® processor E5-2609v4, 20 MB, 1.70 GHz
- Intel® Xeon® processor E5-2637v4, 15 MB, 3.50 GHz
- Intel® Xeon® processor E5-2603v4, 15 MB, 1.70 GHz
- Intel® Xeon® processor E5-2623v4, 10 MB, 2.60 GHz
- Intel® Xeon® processor E5-2697Av4, 40 MB, 2.60 GHz
- 40 MB, 2.60 GHz
- Processor quantity maximum 2
- Supported capacity RAM (max.) 1024 GB, 16 Memory slot(s) DIMM (DDR4) ECC,
- Serial ATA 10 x Serial ATA total
- Controller functions Serial ATA III (6 Gbit), AHCI, RAID 0/1/5/10
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 960 GB High Endurance, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- SSD SATA III, 128 GB, 2.5-inch
- SSD PCIe, 2x 1024 GB M.2 NVMe Highend card
- SSD PCIe, 2x 1024 GB M.2 NVMe card
- SSD PCIe, 2x 512 GB M.2 NVMe Highend card
- SSD PCIe, 2x 512 GB M.2 NVMe card
- SSD PCIe, 2x 256 GB M.2 NVMe Highend card
- SSD PCIe, 2x 256 GB M.2 NVMe card
- SSD PCIe, 1x1024 GB M.2 NVMe Highend card
- SSD PCIe, 1x 1024 GB M.2 NVMe card
- SSD PCIe, 1x 512 GB M.2 NVMe Highend card
- SSD PCIe, 1x 512 GB M.2 NVMe card
- SSD PCIe, 1x 256 GB M.2 NVMe Highend card
- SSD PCIe, 1x 256 GB M.2 NVMe card
- HDD SATA III, 10,000 rpm, 500 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1000 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SAS, 15,000 rpm, 600 GB, 2.5-inch
- HDD SAS, 15,000 rpm, 300 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1800 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1200 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 900 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 600 GB, 2.5-inch
- Drive bays 2 x 3.5-inch external bays
- 4 x 3.5-inch internal bays
- 1 x 5.25-inch external bays
- Slots 4 x PCI-Express 3.0 x16
- 1 x PCI-Express 2.0 x4 (mech. x16)
- Interfaces 1 x Audio: in (rear)
- 1 x Audio: out (rear)
- 1 x Audio: in
- 1 x Audio: out
- 1 x Internal speakers
- 9 x USB 2.0 total
- 4 (2x USB 3.0) x USB front
- 3, thereof 1 type A x USB internal
- 6 x USB rear
- 2 x Ethernet (RJ-45)
- Graphics features Ultra-high-end 3D: NVIDIA® Quadro® P6000, 24 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- Ultra-high-end 3D: NVIDIA® Quadro® P5000, 16 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- High-end 3D: AMD FirePro™ W7100, 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD FirePro™ W4300, 4 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Entry 3D: NVIDIA® Quadro® K420, 2 GB, 192 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Professional 2D: NVIDIA® NVS™ 510, 2 GB, 16 cores, PCIe 2.0 x16, 4x miniDP, 4x miniDP/DP Adapter
- Professional 2D: NVIDIA® NVS™ 315, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- Audio codec Realtek ALC671
- LAN 10/100/1,000 MBit/s Intel® I217LM and Intel® I210
- Weight approx. 20 kg
- approx. 44.8 lbs
- Dimensions (W x D x H) 186 x 618 x 430 mm
- 7.32 x 24.3 x 16.9 inch
- Special features Graphics virtualization with NVIDIA Grid™
- Warranty period 3 years (depending on country)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
