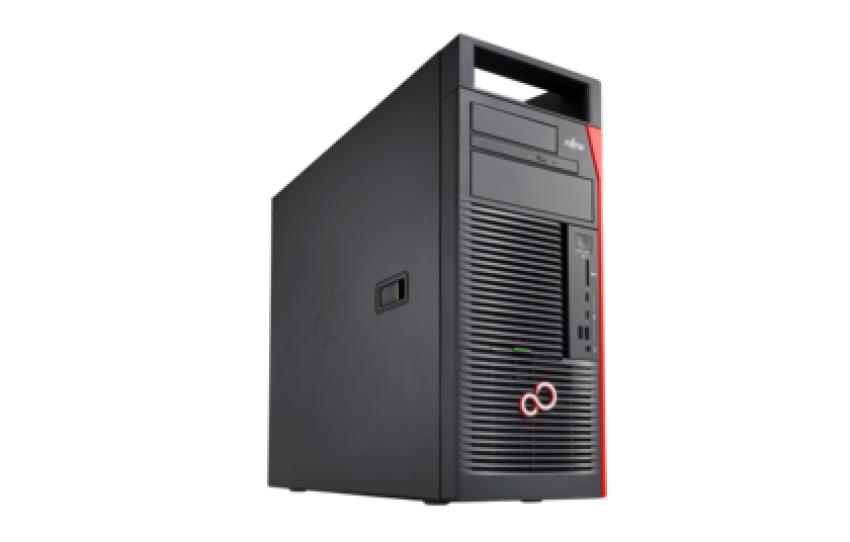

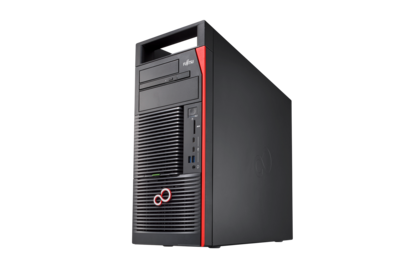

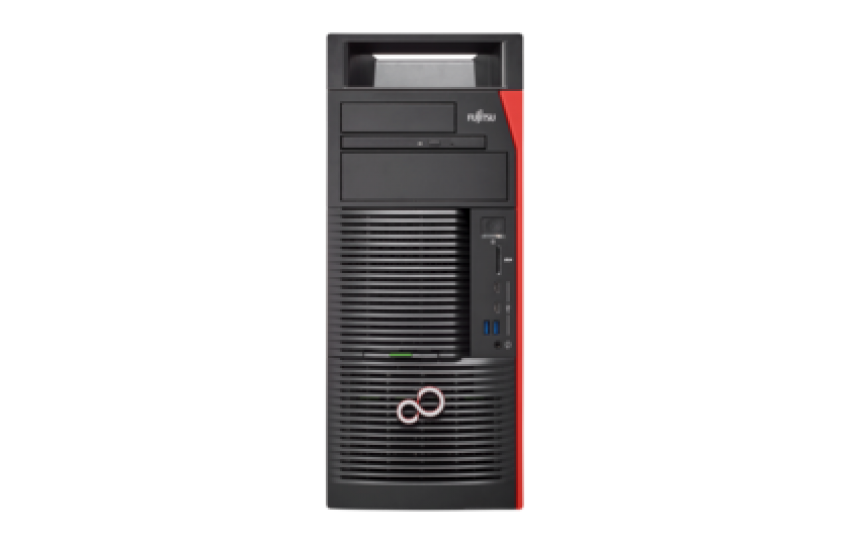

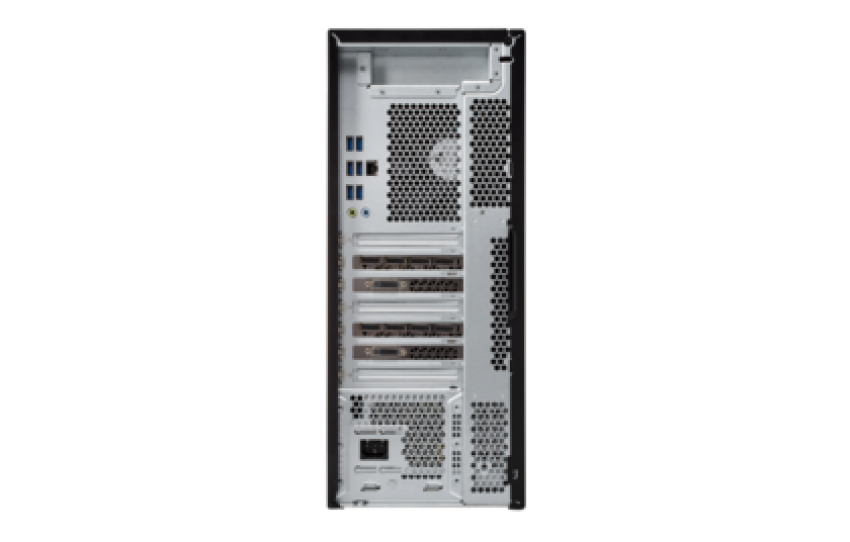

FUJITSU Workstation CELSIUS M770
At Fujitsu, we are proud of our engineering capabilities which allowed us to optimize the CELSIUS M770 to combat today’s professional and technical challenges making it the ideal desktop workstation for computer-aided engineering area as well as demanding media & entertainment applications.
- Workstation CELSIUS M770 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro for Workstations
- Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
- Windows 10 Pro for Workstations
- Windows 10 Pro
- Additional software (preinstalled) Workplace Protect (secure authentication solution)
- McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3498-A (extended ATX)
- D3498-U (extended ATX)
- Chipset Intel® C422
- Intel® X299
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor W-2102, 2.90 GHz
- Intel® Xeon® processor W-2104, 3.20 GHz
- Intel® Xeon® processor W-2123, 3.60 GHz, up to 3.9 GHz
- Intel® Xeon® processor W-2125, 4.00 GHz, up to 4.5 GHz
- Intel® Xeon® processor W-2133, 3.60 GHz, up to 3.9 GHz
- Intel® Xeon® processor W-2135, 3.70 GHz, up to 4.5 GHz
- Intel® Xeon® processor W-2145, 3.70 GHz, up to 4.5 GHz
- Intel® Xeon® processor W-2155, 3.30 GHz, up to 4.5 GHz
- Intel® Core™ i9 processor 7900X, 13.75 MB, 3.30 GHz, up to 4.3 GHz
- Intel® Core™ i7-7800X processor, 8.25 MB, 3.50 GHz, up to 4.0 GHz
- Intel® Core™ i7-7820X processor, 11 MB, 3.60 GHz, up to 4.3 GHz
- Processor quantity maximum 1
- Supported capacity RAM (max.) 256 GB, 8 Memory slot(s) DIMM (DDR4) ECC, 4 memory channels supporting up to 2 DIMMs per channel. For quad channel, a minimum of 4 memory modules have to be ordered and the capacity per channel has to be the same.
- DDR4 2,666MHz may be clocked down to 2,400 or 2,133 depending on the processor.
- 128 GB, 8 Memory slot(s) DIMM (DDR4), 4 memory channels supporting up to 2 DIMMs per channel. For quad channel, a minimum of 4 memory modules have to be ordered and the capacity per channel has to be the same.
- DDR4 2,666MHz or 2,400MHz (depending on CPU) may be clocked down depending on the memory configuration.
- Serial ATA 8 x Serial ATA total
- Controller functions Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 960 GB High Endurance, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch, SED
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- SSD PCIe, 1024 GB M.2 NVMe module
- SSD PCIe, 1024 GB M.2 NVMe Highend module
- SSD PCIe, 1000 GB U.2, 2.5-inch, business critical
- SSD PCIe, 512 GB M.2 NVMe module
- SSD PCIe, 512 GB M.2 NVMe Highend module
- SSD PCIe, 500 GB U.2, 2.5-inch, business critical
- SSD PCIe, 256 GB M.2 NVMe module
- SSD PCIe, 256 GB M.2 NVMe Highend module
- SSD PCIe, 2x 1024 GB M.2 NVMe Highend card
- SSD PCIe, 2x 1024 GB M.2 NVMe card
- SSD PCIe, 2x 512 GB M.2 NVMe Highend card
- SSD PCIe, 2x 512 GB M.2 NVMe card
- SSD PCIe, 2x 256 GB M.2 NVMe Highend card
- SSD PCIe, 2x 256 GB M.2 NVMe card
- SSD PCIe, 1x1024 GB M.2 NVMe Highend card
- SSD PCIe, 1x 1024 GB M.2 NVMe card
- SSD PCIe, 1x 512 GB M.2 NVMe Highend card
- SSD PCIe, 1x 512 GB M.2 NVMe card
- SSD PCIe, 1x 256 GB M.2 NVMe Highend card
- SSD PCIe, 1x 256 GB M.2 NVMe card
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SAS, 10,000 rpm, 1800 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1200 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 900 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 600 GB, 2.5-inch
- Drive bays 1 x 3.5-inch external bays
- 4 x 3.5-inch internal bays
- 1 x 5.25-inch external bays
- Slots 2 x PCI-Express 3.0 x16
- 1 x PCI-Express 3.0 x16
- 2 x PCI-Express 3.0 x4
- 1 x PCI-Express 3.0 x4
- 2 x PCI-Express 3.0 x1
- Interfaces 1 x Audio: in (rear)
- 1 x Audio: out (rear)
- 1 x Audio: in
- 1 x Audio: out
- 1 x Internal speakers
- 2 optional via front panel x USB 2.0 total
- 2x USB 2.0; 2x USB 3.1 (Gen1); optional: 2x USB 3.1 Type-C (Gen2) instead of 2x USB 2.0 x USB front
- 3, thereof 1 type A x USB internal
- 6 x USB rear
- 1 x Ethernet (RJ-45)
- 1 (optional) x eSATA
- Graphics features Ultra-high-end 3D: NVIDIA® Quadro® P5000, 16 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- High-end 3D: AMD Radeon™ Pro WX 7100 , 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P620, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- Audio codec Realtek ALC671
- LAN 10/100/1,000 MBit/s Intel® I219LM
- Weight approx. 18 kg
- approx. 39.67 lbs
- Dimensions (W x D x H) 176 x 500 x 433 mm
- 6.9 x 19.7 x 17.1 inch
- Warranty period 3 years (depending on country)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
