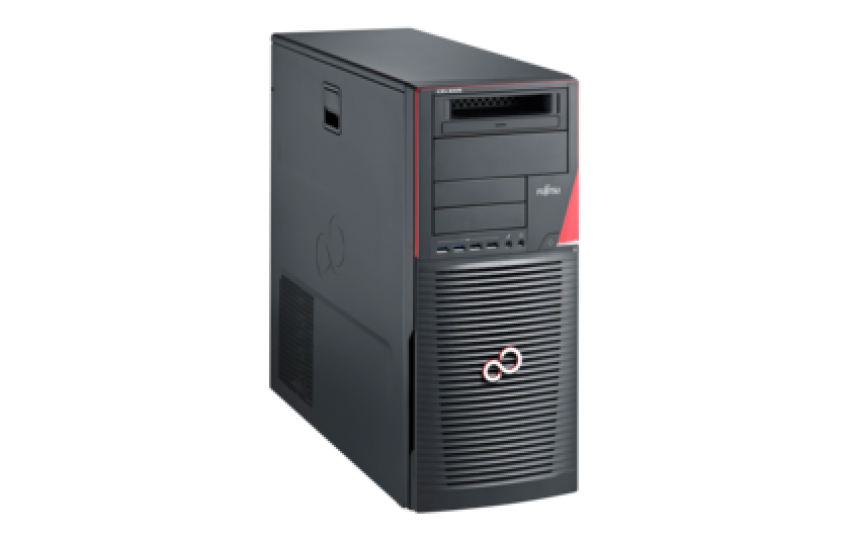

FUJITSU Workstation CELSIUS M740 Long Lifecycle
Certain applications as well as business requirements demand long-lasting roll-outs in both, public and private institutions, such as medical environments, telecommunication or power plant IT. The FUJITSU CELSIUS M740 Long Lifecycle desktop workstation is the ideal choice as it guarantees a minimum lifecycle of 36 months.
- Workstation CELSIUS M740 Long Lifecycle VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro
- Additional software (preinstalled) Workplace Protect (secure authentication solution)
- McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3348-A2x (ATX)
- Chipset Intel® C612
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E5-2680v4, 35 MB, 2.40 GHz
- Intel® Xeon® processor E5-2640v4, 25 MB, 2.40 GHz
- Intel® Xeon® processor E5-2620v4, 20 MB, 2.10 GHz
- Intel® Xeon® processor E5-2609v4, 20 MB, 1.70 GHz
- Processor quantity maximum 1
- Supported capacity RAM (max.) 256 GB, 8 Memory slot(s) DIMM (DDR4) ECC,
- Serial ATA 10 x Serial ATA total
- Controller functions Serial ATA III (6 Gbit), AHCI, RAID 0/1/5/10
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive SSHD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- PCIe-SSD, 2x 1024 GB M.2 NVMe Highend card
- PCIe-SSD, 2x 1024 GB M.2 NVMe card
- PCIe-SSD, 2x 512 GB M.2 NVMe Highend card
- PCIe-SSD, 2x 512 GB M.2 NVMe card
- PCIe-SSD, 2x 256 GB M.2 NVMe Highend card
- PCIe-SSD, 2x 256 GB M.2 NVMe card
- PCIe-SSD, 1x1024 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 1024 GB M.2 NVMe card
- PCIe-SSD, 1x 512 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 512 GB M.2 NVMe card
- PCIe-SSD, 1x 256 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 256 GB M.2 NVMe card
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1000 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SAS, 15,000 rpm, 600 GB, 2.5-inch
- HDD SAS, 15,000 rpm, 300 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1800 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1200 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 900 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 600 GB, 2.5-inch
- Drive bays 2 x 3.5-inch external bays
- 4 x 3.5-inch internal bays
- 1 x 5.25-inch external bays
- Slots 1 x PCI-Express 3.0 x4 (mech. x16)
- 1 x PCI-Express 3.0 x4 (mech. x8)
- 2 x PCI-Express 3.0 x16
- 1 x PCI-Express 2.0 x4 (mech. x16)
- Interfaces 1 x Audio: in (rear)
- 1 x Audio: out (rear)
- 1 x Audio: in
- 1 x Audio: out
- 1 x Internal speakers
- 9 x USB 2.0 total
- 4 (2x USB 3.0) x USB front
- 3, thereof 1 type A x USB internal
- 6 x USB rear
- 1 x Ethernet (RJ-45)
- Graphics features Ultra-high-end 3D: NVIDIA® Quadro® P6000, 24 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- Ultra-high-end 3D: NVIDIA® Quadro® M6000, 24 GB, 3,072 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort, stereo, SLI
- Ultra-high-end 3D: NVIDIA® Quadro® P5000, 16 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- Ultra-high-end 3D: NVIDIA® Quadro® M5000, 8 GB, 2304 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® M4000, 8 GB, 1344 cores, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® M2000, 4 GB, 768 cores, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD FirePro™ W4300, 4 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® K1200, 4 GB, 384 cores, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® K620, 2 GB, 384 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Entry 3D: NVIDIA® Quadro® K420, 2 GB, 192 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Professional 2D: NVIDIA® NVS™ 510, 2 GB, 16 cores, PCIe 2.0 x16, 4x miniDP, 4x miniDP/DP Adapter
- Professional 2D: NVIDIA® NVS™ 315, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- Audio codec Realtek ALC671
- LAN 10/100/1,000 MBit/s Intel® I217LM
- Weight 18 kg
- Dimensions (W x D x H) 186 x 481 x 430 mm
- Warranty period 3 years (depending on country)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
