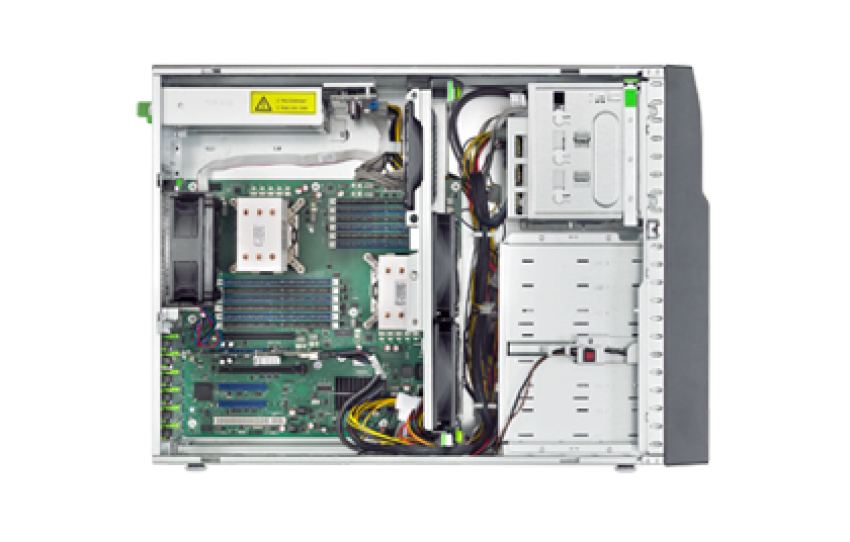

FUJITSU Server PRIMERGY TX2540 M1

The FUJITSU PRIMERGY TX2540 M1 is the perfect Tower Server for SMEs as well as branch offices. It supports up to two processors and combines affordable performance with balanced expandability. Its optional redundancy, up to 24 hard disks, and 192 GB of RAM is ideal as a starting-point for server virtualization or as a database and communication server.
  • Server PRIMERGY TX2540 M1                    VER STYLE SHEET EM PDF
    • Chipset Intel® C602
    • Mainboard type D3099-B
    • Product Type Dual Socket Tower Server
    • Processor Intel® Xeon® processor E5-2400 v2 product family
    • Memory 4 GB - 192 GB, DIMM (DDR3)
    • Memory protection Advanced ECC, SDDC
    • Drives (optional) DVD-ROM, half height, SATA I
    • DVD Super Multi, half height, SATA I
    • DVD Super Multi, slimline, SATA I
    • LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
    • RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
    • LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
    • LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
    • PCI-Express 3.0 x4 (mech. x8) 2 x Full height 280 mm length
    • PCI-Express 3.0 x16 2 x Full height first slot: 280 mm length, second slot: 170 mm length (only available with second CPU)
    • PCI-Express 2.0 x4 (mech. x8) 1 x Full height 230 mm length; preferred RAID slot
    • PCI-slots 1 x PCI 32Bit/33 MHz (support for 3.3V and 3.3V/5V cards; no support of 5V only cards)
    • Slot Notes in SAS configuration 1x PCI-Express occupied by modular RAID controller
    • Accessible drive bays 3 x 5.25/1.6-inch
    • 3 x 5.25/1.6-inch for 1 x backup drive + 1 x ODD
    • Optional accessible drives All possible options described in relevant system configurator.
    • Storage drive bays 3.5-inch or 2.5-inch hot-plug SAS/SATA
    • Max. 8 x 3.5-inch
    • Max. 24 x 2.5-inch
    • Max. 24 x 2.5-inch
    • Storage drive type HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 500 GB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 2.5-inch, business critical
    • HDD SATA, 6 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
    • HDD SAS, 6 Gb/s, 300 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 450 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 600 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 2.5-inch, business critical
    • HDD SAS, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SAS, 6 Gb/s, 2 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SAS, 6 Gb/s, 4 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
    • HDD SAS, 6 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
    • HDD SAS, 6 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
    • HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SAS, 12 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SAS, 12 Gb/s, 4 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SAS, 12 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
    • HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
    • HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
    • SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
    • SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
    • SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
    • I/O controller onboard Intel® C602, 6-port SATA (4 x for internal hard disks, 2 x for accessible drives)
    • All hardware storage controller options are described under Components
    • 2 x 10/100/1000 Mbit/s Ethernet
    • IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller)
    • Trusted Platform Module (TPM) Infineon / TPM 1.2 module; TCG compliant (option)
    • Power supply configuration 1 x standard power supply or1 x hot-plug power supply or 2 x hot-plug power supply for redundancy depending on model
    • Active power (max. configuration) 432 W
    • Weight 16 kg - 32 kg
    • Rack (W x D x H) 483 x 611 x 177 mm
    • Floor-stand (W x D x H) 177 x 651 x 456 mm
    • Server Management Server Management
    • Standard ServerView Suite - Deploy
    • Installation Manager
    • Scripting Toolkit, ServerView Suite - Control
    • Operations Manager incl. PDA and ASR & R
    • Agents and CIM Providers / Agentless Service
    • System Monitor
    • RAID Manager
    • Capacity Management
    • Power Management
    • Storage Support, ServerView Suite - Maintain
    • Remote Management (iRMC in combination with Intel® Node Manager)
    • Update Management (BIOS, Firmware, Windows Drivers, Agents and CIM Providers)
    • Performance Measurement
    • Asset Management
    • Online Diagnostics, ServerView Suite - Integrate
    • Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others
    • Option ServerView embedded Lifecycle Management (eLCM)
    • Lifecycle management, ServerView Suite - Maintain
    • iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media
    • Special features Affordable dual processor performance, solid expandability and optional redundancy features, ideal for SMEs and branch offices
    • Warranty period 3 years
    • Warranty type Onsite warranty Warranty conditions tbd
    • Service Lifecycle 5 years after end of product life
    • Service Weblink http://www.fujitsu.com/fts/products/product-support-services/
