FUJITSU Server PRIMEQUEST 2800B3
Os servidores PRIMEQUEST (PQ1800E / PQ1800E2) da Fujitsu são servidores x86 de alto desempenho de missão crítica que permitem que os clientes usufruam dos benefícios económicos e da flexibilidade das normas da indústria Linux e Windows, preservando, ao mesmo tempo, todos os atributos dos serviços de centros de dados de missão crítica.
- FUJITSU Server PRIMEQUEST 2800B3 VER STYLE SHEET EM PDF

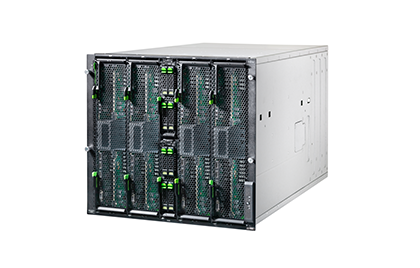

FUJITSU Server PRIMEQUEST 2800B3 is an 8-socket rack server with the latest Intel® Xeon® E7-8800 v4 processor family; it is easy to scale up to 192 cores and enormous 24TB DDR4 main memory. In conjunction with 32 PCIe 3.0 slots and advanced RAS, it is the right choice for demanding databases, in-memory solutions and business-critical applications.
echnical details
Mainboard type up to 4 x Systemboard
Product Type Octo Socket Rack Server
Processor Intel® Xeon® processor E7-8800 v4 product family
Memory 16 GB - 24 TB, DIMM (DDR4)
Memory protection ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, DDDC (Double Device Data Correction),
Storage drive bays 2.5-inch hot-plug SAS
Max. 8 x 2.5-inch with max. 2 x Disk Units
Storage drives PCIe-SSD AIC, 800 GB, MLC, HHHL, Flash drive, 10 DWPD (drive writes per day)
PCIe-SSD AIC, 1.6 TB, MLC, HHHL, Flash drive, 10 DWPD (drive writes per day)
PCIe-SSD AIC, 2 TB, MLC, HHHL, Flash drive, 10 DWPD (drive writes per day)
SSD SAS, 12 Gb/s, 200 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 400 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 800 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 1.6 TB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
I/O controller onboard RAID 0/1 or RAID 5/6 controller integrated in System board and/or Disk Unit (option)
Options are described under Components RAID controller
Intel® I350-AM2
Intel® X540-AT2
LAN controllers are integrated in optional I/O units, details are described under I/O options
PQ2000 Management Board (MMB)
Power supply configuration Up to 6 hot plug power supplies.
Base unit equipped with 0 power supplies, redundancy as option.
Active power (max. configuration) 5,227 W
Weight Up to 143 kg
Rack (W x D x H) 445 x 782 x 438 mm
Server Management Server Management
Standard ServerView Suite - Maintain
Remote Management (iRMC in combination with Intel® Node Manager)
Update Management (BIOS, Firmware, Windows Drivers, Agents and CIM Providers)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others, ServerView Suite - Deploy
SV Installation Manager, ServerView Suite - Control
Operations Manager incl. PDA and ASR & R
Agents and CIM Providers / Agentless Service
System Monitor
RAID Manager
Capacity Management
Power Management
Storage Support
Warranty period 3 years
Warranty type Onsite Service (depending on country)
Service Lifecycle 5 years after end of product life
Service Weblink www.fujitsu.com/support
