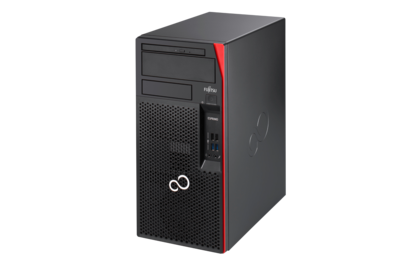

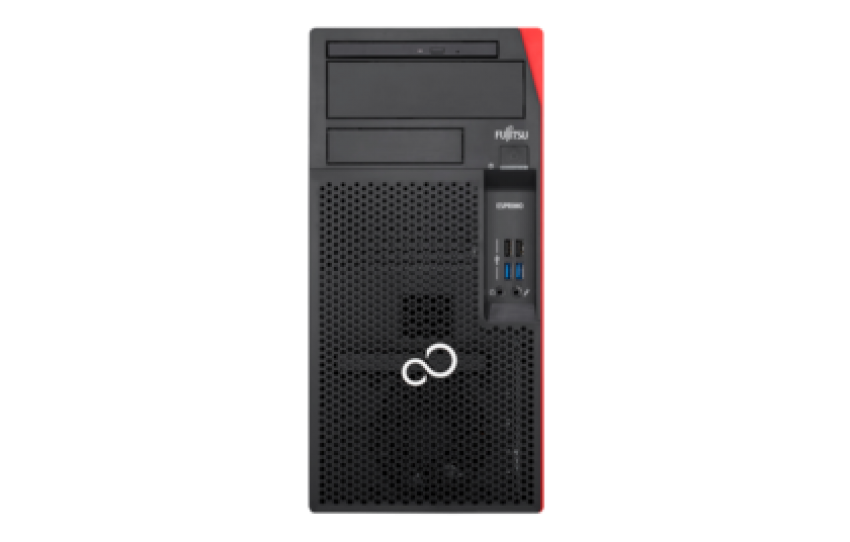

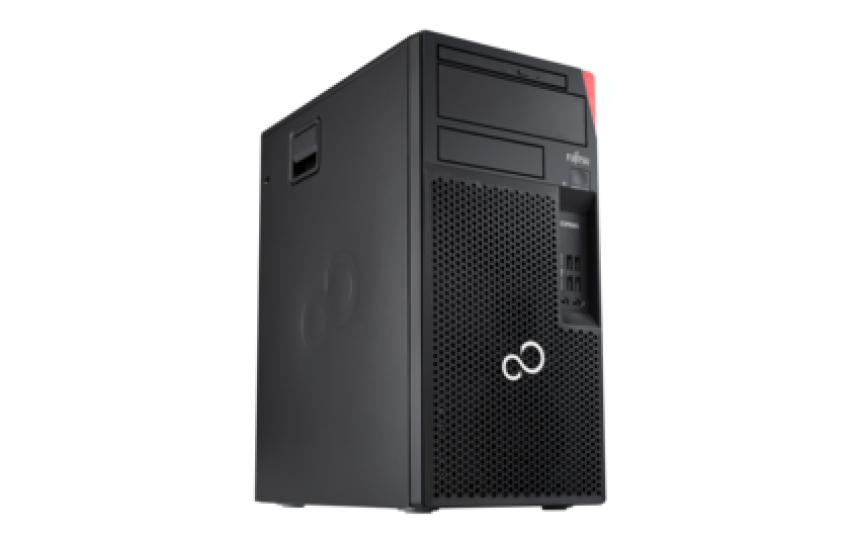

FUJITSU Desktop ESPRIMO P558
The FUJITSU ESPRIMO P558 Desktop PC provides high-quality computing for your daily office tasks. It supports attractive price points and its managed lifecycle ensures the functional stability needed for project continuity. Optional security functions, such as SmartCard reader, the EraseDisk feature and cable cover help secure your valuable business data as well as hardware components. You can easily configure the PC to meet your specific hardware needs as well as customize it to satisfy even more complex project requirements. With the ENERGY STAR® certification, the Low Power Active Mode and up to 94%-efficient power supply, ESPRIMO P558 helps reduce your carbon footprint and energy bill.
- Desktop ESPRIMO P558 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
- Windows 10 Home
- Mainboard D3600 (proprietary )
- Chipset Intel® H310
- Processor Intel® Core™ i7-8700 processor, 12 MB, 3.20 GHz, up to 4.6 GHz
- Intel® Core™ i5-8600 processor, 9 MB, 3.10 GHz, up to 4.3 GHz
- Intel® Core™ i5-8500 processor, 9 MB, 3.00 GHz, up to 4.1 GHz
- Intel® Core™ i5-8400 processor, 9 MB, 2.80 GHz, up to 4.0 GHz
- Intel® Core™ i3-8100 processor, 6 MB, 3.60 GHz
- Intel® Pentium® Gold G5400 processor, 4 MB, 3.70 GHz
- Intel® Celeron® processor G4900, 2 MB, 3.10 GHz
- Supported capacity RAM (max.) 32 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 or 2133 depending on used processor
- Serial ATA total 3
- thereof eSATA 1
- thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- SSD PCIe, 256 GB M.2 NVMe module
- SSD PCIe, 256 GB M.2 NVMe module, SED
- SSD PCIe, 512 GB M.2 NVMe module
- SSD PCIe, 512 GB M.2 NVMe module, SED
- SSD PCIe, 1024 GB M.2 NVMe module
- SSD PCIe, 1024 GB M.2 NVMe module, SED
- SSD SATA III, 128 GB, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 1024 GB, 2.5-inch
- Drive bay 1 x 3.5-inch external bay
- 2 x 3.5-inch internal bay
- 2 x 5.25-inch external bay
- Slots 1 x PCI-Express 3.0 x16
- 1 x PCI-Express x1
- 1 x PCI-Express 2.0 x4 (mech. x16)

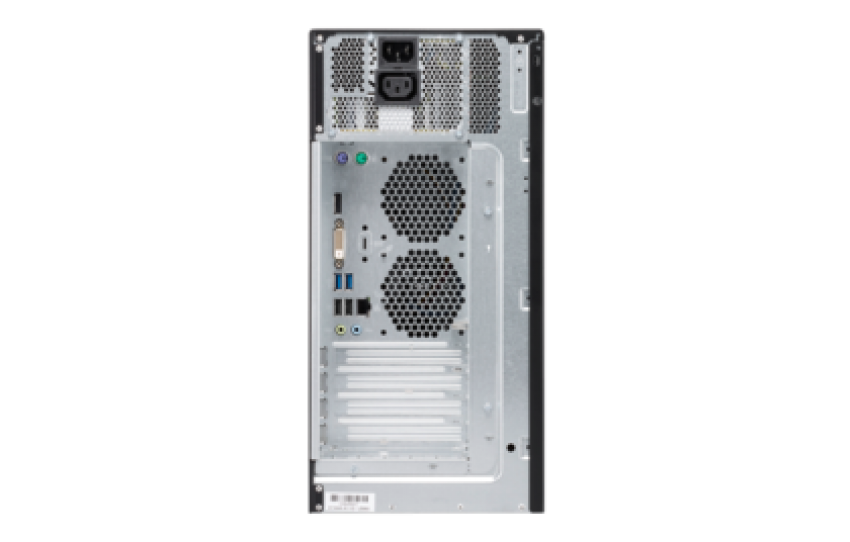

- Interfaces 1 x Audio: line-in
- 1 x Audio: line-out
- 1 x Front audio: headphone
- 1 x Front audio: microphone
- 4 x USB 3.1 Gen1 (USB 3.0) total
- 6 x USB 2.0 total
- 2x USB 2.0; 2x USB 3.0; optional: 1x USB 3.1 Type-C (Gen2) via add on card and front adapter bay x USB front
- 2x USB 2.0; 2x USB 3.0; optional: additional 1x USB 3.1 Type C (Gen2) via add on card x USB rear
- 2x USB 2.0 x USB internal
- optional: via adapter card x VGA
- 1 x Ethernet (RJ-45)
- 1 (DVI-D) x DVI
- 1 (optional) x eSATA
- 1 x DisplayPort
- 2 x Mouse / Keyboard (PS/2)
- Graphics Intel® UHD Graphics 610, Intel® UHD Graphics 630, Up to half size of total system memory
- Audio type Realtek ALC671
- Communication 10/100/1,000 MBit/s Realtek RTL8111G
- Weight 7 kg
- Dimensions (W x D x H) 180 x 304 x 375 mm
- 7.09 x 11.97 x 14.76 inch
- Power efficiency note power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 80% / 85% /88% / 87%; for 115V: 79%/ 84%/ 87%/ 84%
- power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 87% / 91% / 94% / 93%; for 115V: 86%/ 90%/ 92%/ 90%
- Special features Made in Germany, EraseDisk functionality, TPM
- Warranty period 1 year (for countries in EMEIA)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
