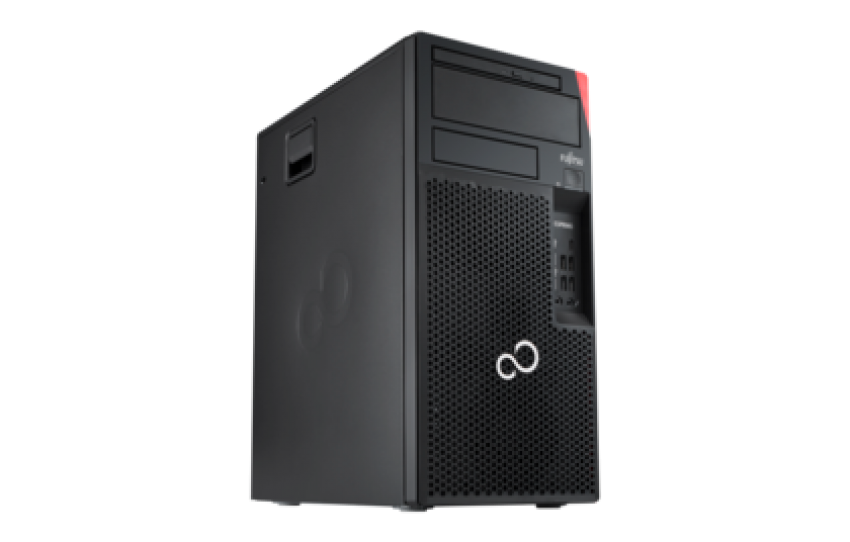

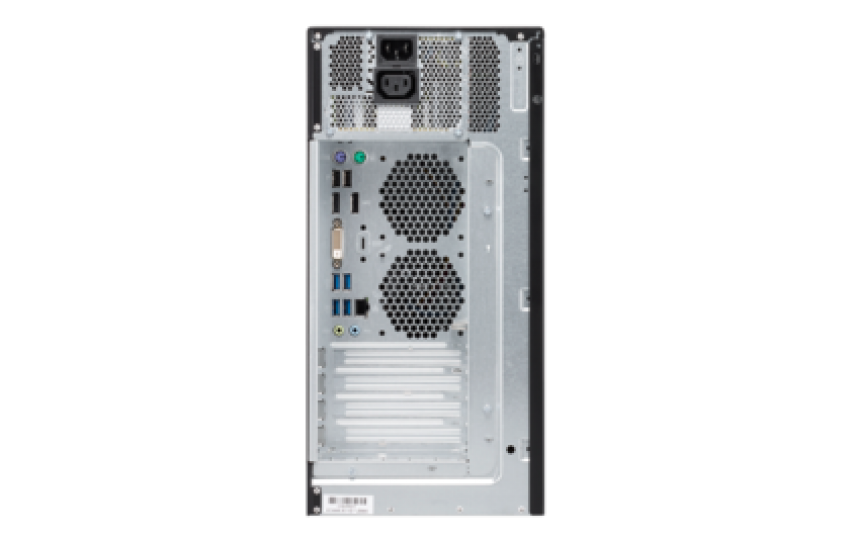

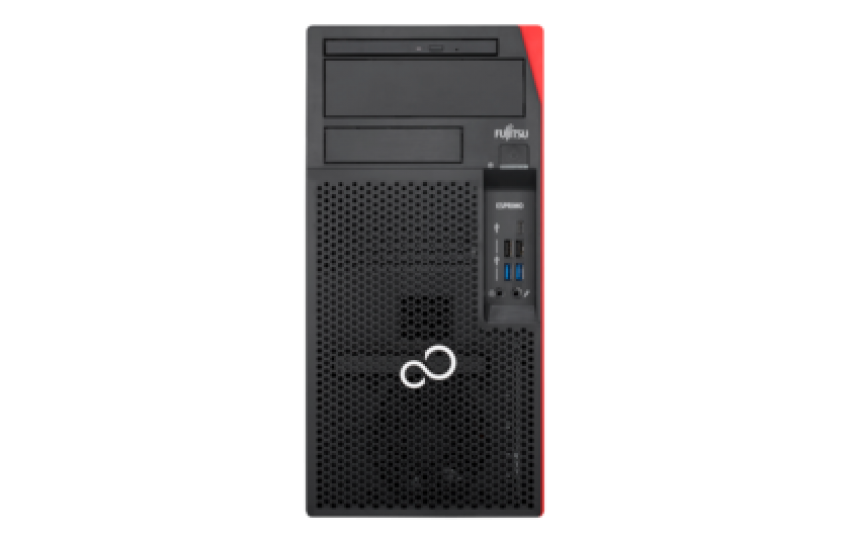

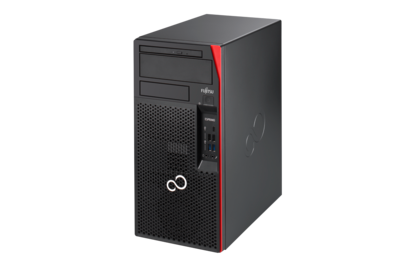

FUJITSU Desktop ESPRIMO P758
The FUJITSU ESPRIMO P758 Desktop provides high expandability and solid performance for your challenging business applications. The 8th Gen Intel® Core™ processor combined with the DeskView manageability suite support advanced manageability capabilities. Its energy-efficient power supply and the innovative Low Power Active Mode feature help reduce your power bills while ensuring instant communication in your workplace. The optional Intel® Standard Manageability keeps administration costs low. Finally, EraseDisk ensures secure system retirement.
- Desktop ESPRIMO P758 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
- Windows 10 Home
- Mainboard D3601 (proprietary )
- Chipset Intel® Q370
- Processor Intel® Core™ i7-8700 processor, 12 MB, 3.20 GHz, up to 4.6 GHz
- Intel® Core™ i5-8600 processor, 9 MB, 3.10 GHz, up to 4.3 GHz
- Intel® Core™ i5-8500 processor, 9 MB, 3.00 GHz, up to 4.1 GHz
- Intel® Core™ i5-8400 processor, 9 MB, 2.80 GHz, up to 4.0 GHz
- Intel® Core™ i3-8100 processor, 6 MB, 3.60 GHz
- Intel® Pentium® Gold G5400 processor, 4 MB, 3.70 GHz
- Intel® Celeron® processor G4900, 2 MB, 3.10 GHz
- Supported capacity RAM (max.) 64 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration
- Serial ATA total 5
- thereof eSATA 2
- thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI
- Drives (optional) MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0
- DVD-ROM
- DVD Super Multi, SATA
- DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
- HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
- HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
- SSD PCIe, 256 GB M.2 NVMe Highend module
- SSD PCIe, 256 GB M.2 NVMe module
- SSD PCIe, 256 GB M.2 NVMe module, SED
- SSD PCIe, 512 GB M.2 NVMe Highend module
- SSD PCIe, 512 GB M.2 NVMe module
- SSD PCIe, 512 GB M.2 NVMe module, SED
- SSD PCIe, 1024 GB M.2 NVMe Highend module
- SSD PCIe, 1024 GB M.2 NVMe module
- SSD PCIe, 1024 GB M.2 NVMe module, SED
- SSD SATA III, 128 GB, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 1024 GB, 2.5-inch
- Drive bay 1 x 3.5-inch external bay
- 2 x 3.5-inch internal bay
- 2 x 5.25-inch external bay
- Slots 1 x PCI-Express 3.0 x4 (mech. x16)
- 1 x PCI-Express 3.0 x16
- 1 x PCI-Express 3.0 x1
- Interfaces 1 x Audio: line-in
- 1 x Audio: line-out
- 1 x Front audio: headphone
- 1 x Front audio: microphone
- 4 x USB 3.1 Gen1 (USB 3.0) total
- 6 x USB 2.0 total
- 2x USB 2.0; 2x USB 3.1 (gen2), 1x USB 3.1 (gen2) Type C; optional: 1x USB 3.1 Type-C (Gen2) via add on card and front adapter bay x USB front
- 2x USB 2.0; 4x USB 3.0; optional: additional 1x USB 3.1 Type C (Gen2) via add on card x USB rear
- 2x USB 2.0 x USB internal
- optional: via adapter card x VGA
- 1 x Ethernet (RJ-45)
- 1 (DVI-D) x DVI
- 1 (optional) x eSATA
- 2 x DisplayPort
- 2 x Mouse / Keyboard (PS/2)
- Graphics Intel® UHD Graphics 610, Intel® UHD Graphics 630, Up to half size of total system memory
- Audio type Realtek ALC671
- Communication 10/100/1,000 MBit/s Intel® I219V
- Weight 7 kg
- Dimensions (W x D x H) 180 x 304 x 375 mm
- 7.09 x 11.97 x 14.76 inch
- Power efficiency note power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 80% / 85% /88% / 87%; for 115V: 79%/ 84%/ 87%/ 84%
- power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 87% / 91% / 94% / 93%; for 115V: 86%/ 90%/ 92%/ 90%
- Special features Made in Germany, Low Power Active Mode, EraseDisk functionality, Keyboard power on, Service-friendly cabinet with EasyChange, EasyFix
- Warranty period 1 year (for countries in EMEIA)
- Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
